Design that Dares

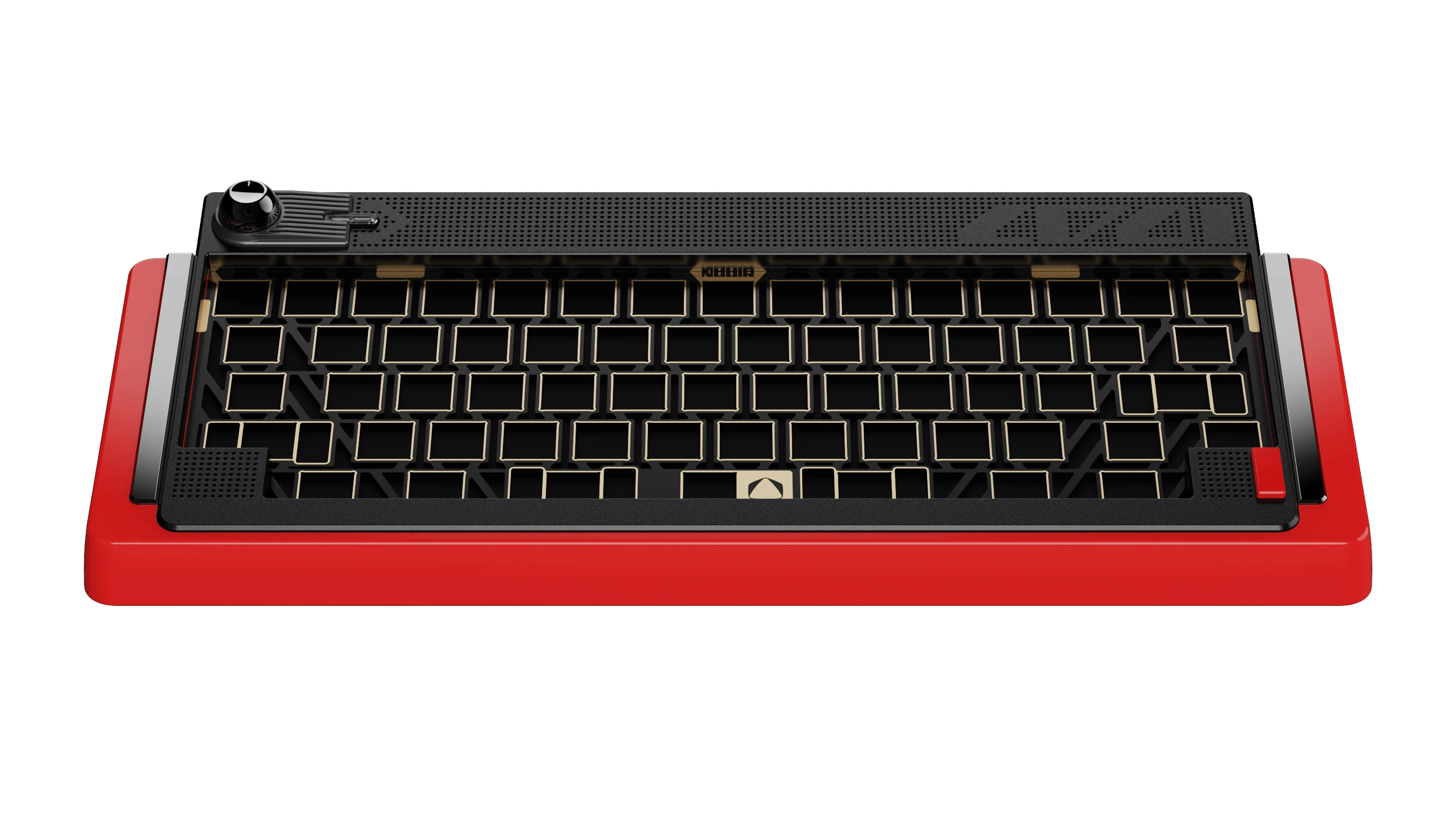

The NOOIR CP01 takes design to a whole new level, turning a functional tool into a visual masterpiece. With a 60% layout, it strips away unnecessary keys to focus on what matters most. But while style may as well be its middle name, it doesn’t skimp on usability. The multimedia knob gives you control over your media. The two programmable spacebars and centrally-located Fn key deepen functionality. And, speaking of programmability, the keyboard is fully customizable with VIA.

Centralized Fn key: all within thumb's reach

The CP01 features a split spacebar design with the Fn key placed right in the center. This setup is great for those who want quick, one-handed access to the F row. The arrow keys have been remapped to FN + W, A, S, D, making navigation feel more intuitive and efficient. These updates maintain the sleek, minimalist look of the 60% layout while making it easier to use, especially for users across different platforms—whether you're on Mac, Linux, or Windows.

VIA-customizable

Beyond its striking design, the NOOIR CP01 is fully customizable with VIA. Whether you want to remap keys, set up complex macros, or create multiple layers for different workflows, VIA gives you the flexibility to tailor the keyboard to your needs.Â

Customize your comfort with the "socket" system

The CP01 features a new structural design called the "Socket". At its core are custom shock-absorbing "positioning pins" that offer adjustable damping. These pins are arranged in modules, with each module holding 2 to 5 pins, allowing users to tweak the keyboard's feel from soft to firm. With 30 pins total, you can fine-tune the rebound strength in specific areas, making it as soft or firm as you like. Adjusting the feel is easy—just swap out or tweak the modules in the regions you want.

Built to last

The NOOIR CP01's aluminum case gives it a robust build that can withstand the rigors of typing and traveling. Weighing approximately 5.5 lbs (2.5 kg), it’s a hefty keyboard that’s designed to stay put, no matter how fast you type.

Designed for comfort

Typing should feel good—period. With an 8° slope and a front height of 0.87 inches (22mm) including the footpad, the NOOIR CP01 is designed to keep your wrists comfortable, reducing strain and letting you type longer.

Long-lasting power

Say goodbye to frequent charging. Equipped with a 4000mAh battery, the CP01 provides long-lasting power that keeps you typing or gaming for hours on end.

Product highlights

60% layout: Compact design compatible with HHKB & WKL
Baked lacquer finish: Refined texture and smooth surface
Aluminum case: Durable and stylish with a 5.5 lbs (2.5 kg) weight
Connectivity: Bluetooth and USB
FR4 plate: Flex-cut for added comfort and durability
Multimedia knob: Left-side placement for easy access
Single-color white LED
8° slope: Ergonomic design for comfortable typing
4000mAh battery: Long-lasting power for extended use

Specs

Layout: 60% (compatible with HHKB & WKL)
Material: Aluminum
Plate: FR4 (Flex-cut)
Size: 334 x 140 x 40mm
PCB thickness: 1.2mm, VIA supported
Hot-swap switch mounting
Stabilizers: PCB only
Lighting: Single-color white LED (can be turned off)
Multimedia knob: Left-side
Battery: 4000mAh
Slope: 8°
Front height: 0.87 inches (22mm, including footpad)
Weight: Approximately 5.5 lbs (2.5kg)
Programmability: VIA programmable

What’s included

Case x1 set
Socket structure x1 set
Socket pins x30
HHKB top plate x1
WKL top plate x1
Foam set x1
Custom black CD-pattern screws x1 set
60% layout hot-swap main PCB & 2 PCB-daughter board & battery x1 set
60% layout FR4 positioning plate x1 set
Custom carrying case x1
Keyboard footpads x4

NOOIR x Gateron N Switches

Type: 5-pin Linear (factory lubed)
Stem: Black POM long stem (dual-rail structure)
Top cover: PC starry blue (dual-rail structure)
Base: Nylon black (dual-rail structure)
Total travel: 3.6mm
Actuation travel: 2mm
Actuation force: 50g
Spring: 20mm dual-stage spring (fast rebound)
Manufacturer: Gateron
90 count
