This product has been discontinued. Luckily, we have a great alternative in the HIFIMAN EF600 Desktop DAC/Amp.

Massive power, superior sound

In 2012, Dr. Fang Bian and his team at HIFIMAN introduced the EF6, the legendary desktop DAC/amplifier that delivers gobs of power and a wide, detailed soundstage.

Ten years later, HIFIMAN is proud to introduce a new model, the EF400, that incorporates the best of recently developed technologies, especially the company’s advanced HIMALAYA R2R DAC. The EF400 is the modern DAC/amp solution, with a compact footprint and price to match, but with sonics that outperform products many times its size.

Fully balanced

The four-channel differential structure features a DAC, buffer, and active filter that add up to unbeatable fully-balanced output for a Class AB DAC/amplifier.

The four-channel fully-differential amplifier circuit features a maximum output of 10.7 Vrms on a 36Ω resistor equivalent load. The result: fully balanced output beyond compare.

The connection king

Boasting nine inputs and outputs, the EF400 can run your whole collection of headphones or pass along amp duties to another taker.

Making gains

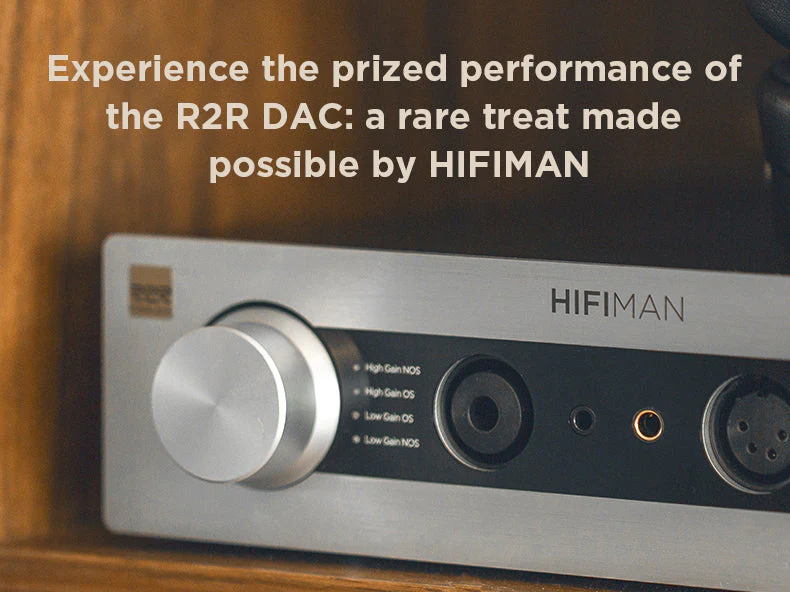

The EF400 features a 4-level function switch for selecting High Gain NOS, High Gain OS, Low Gain OS, or Low Gain OS. Whether you prefer oversampling or non-oversampling with your R2R DAC, the EF400 has you covered.

Product highlights

• Himalaya R2R DAC module
• 4.4W per channel output
• Oxygen free copper wire wound toroidal transformer
• 4 headphone outputs
• 4-level gain function
• 30000uf large capacitors

Specs

• THD+N (Line out): Between 0.002% and 0.004%
• Channel Separation: 125+/-3dB
• Signal to Noise Ratio: 118+/-3dB (A Weighted)
• Maximum Power Output: 4.4 W per channel
• Himalaya R2R DAC module
• Transformer: Oxygen free copper wire wound toroidal

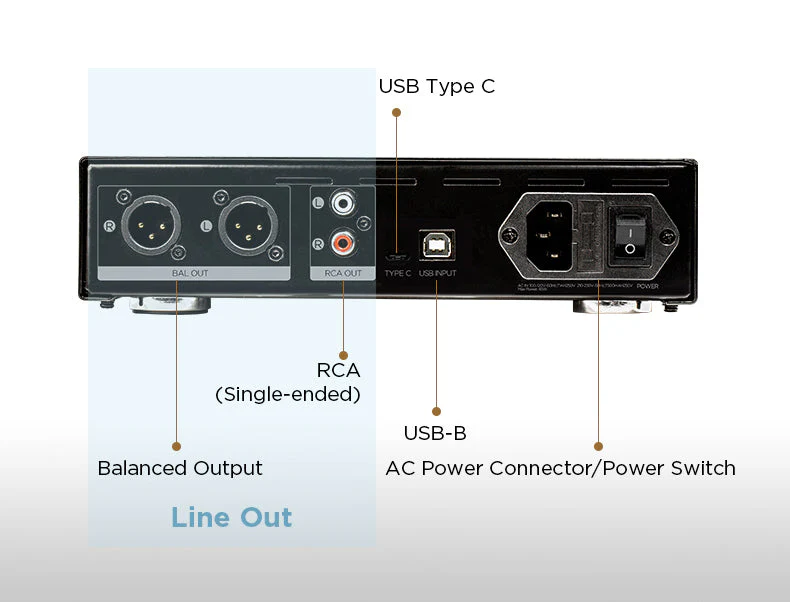

• Outputs: 4.4mm balanced, 6.35mm single-ended, 3.5mm single-ended, XLR 4-pin balanced output, RCA line out, XLR balanced line out
• Inputs: USB Type C, USB Type B
• Gain levels: high gain NOS, high gain OS, low gain OS, low gain NOS
• Dimensions: 9.7” x 8.9” x 2.4” (246.5mm [L] ×228mm [W] ×61mm [H])
• Weight: 6.7lbs (3.08kg)


What pairs well

• HIFIMAN Susvara Planar Magnetic Headphone
• HIFIMAN Arya Planar Magnetic Headphone
• HIFIMAN Ananda Planar Magnetic Headphone
