Dang it.

We hate being the bearers of bad news, but the SMSL M200 DAC has reached its end of life. Luckily, we have a great alternative for you. Check out the SMSL DA-9 Bluetooth 5.0 DAC.

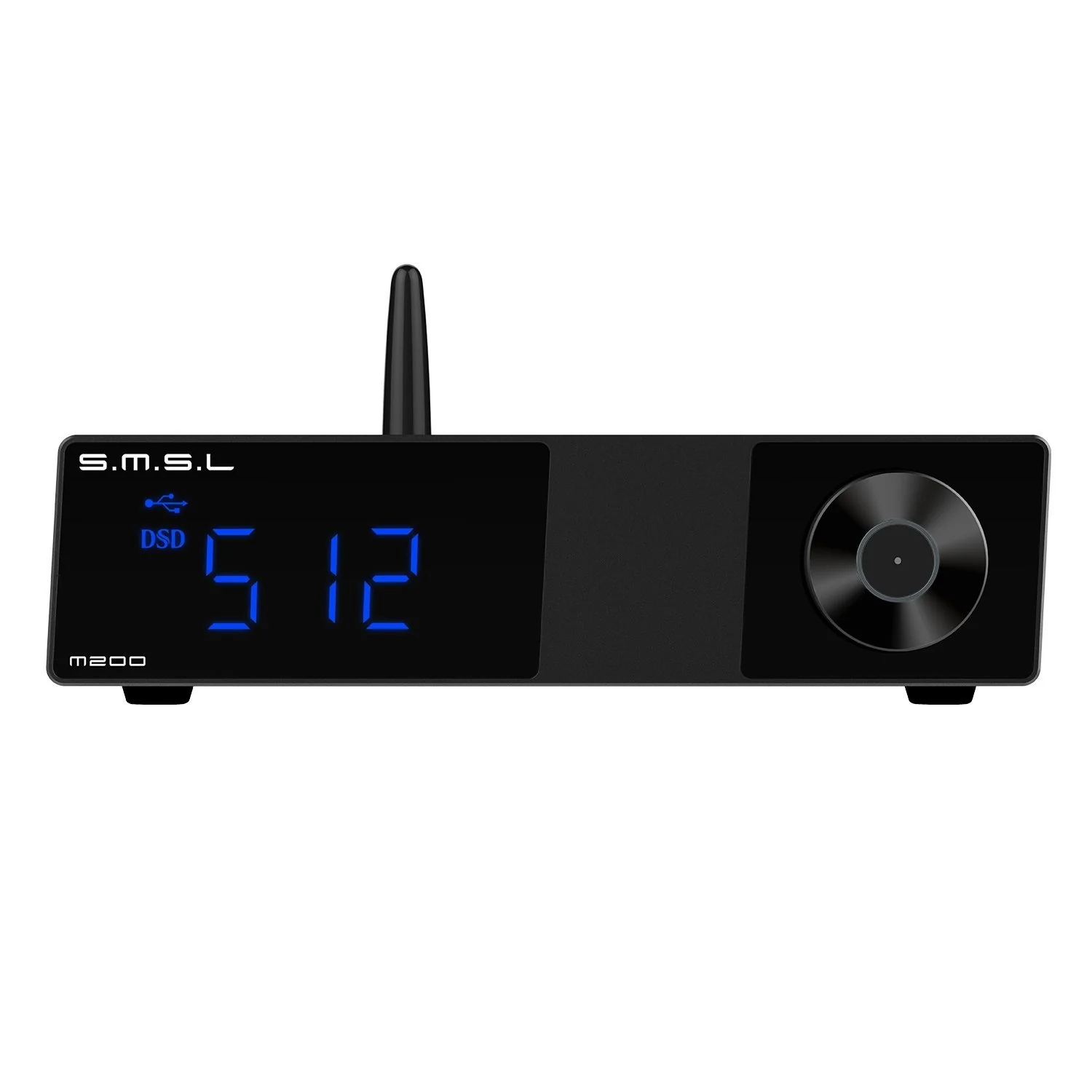

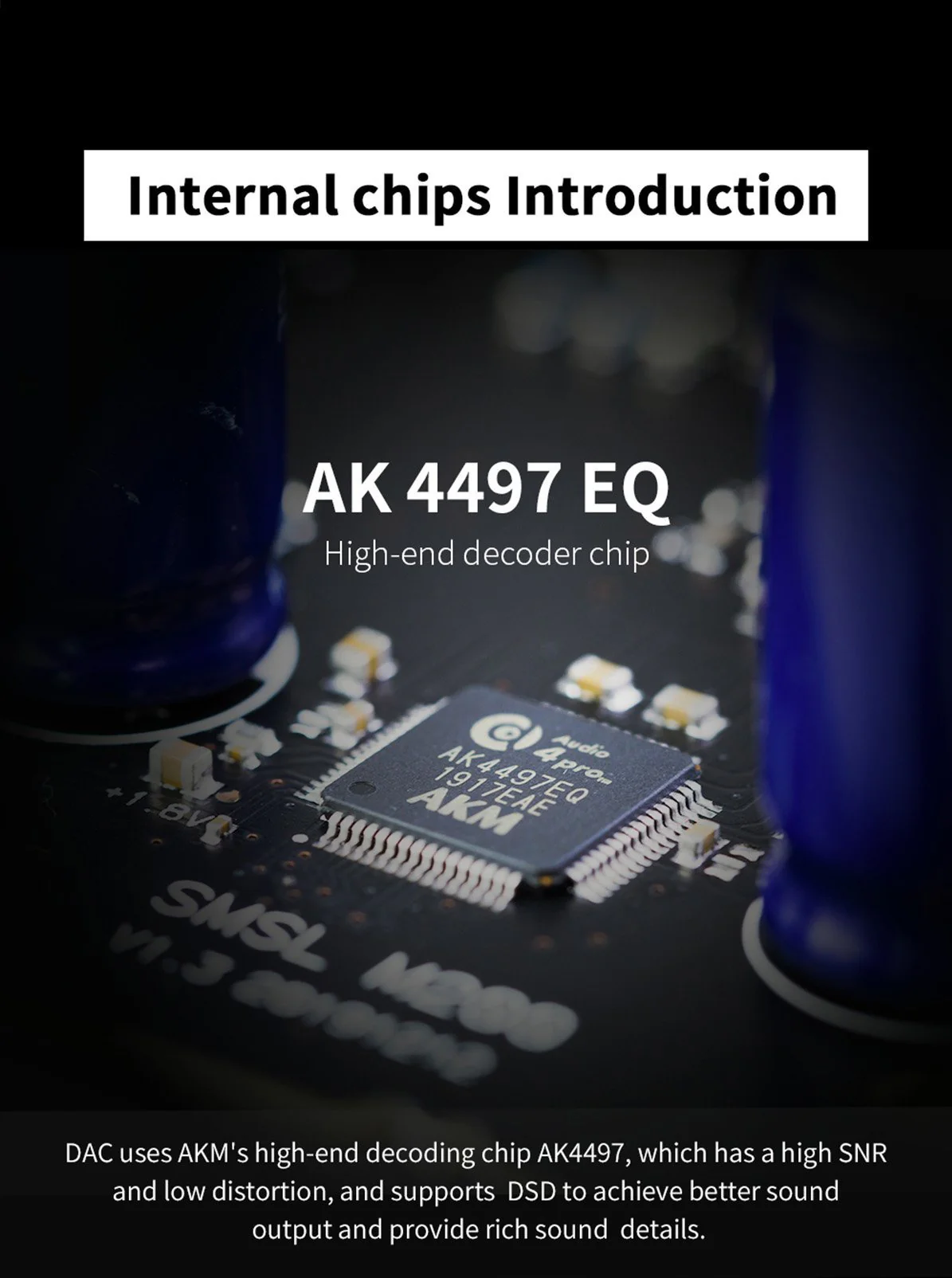

The SMSL M200 DAC is the high resolution bluetooth companion DAC for the SMSL SP200 THX Headphone Amp. The M200 and SP200 together complete a great sounding sound system from SMSL. This DAC uses the AK4497EQ D/A chip from Japanese chip maker AKM to produce a performance that is top tier for the price.

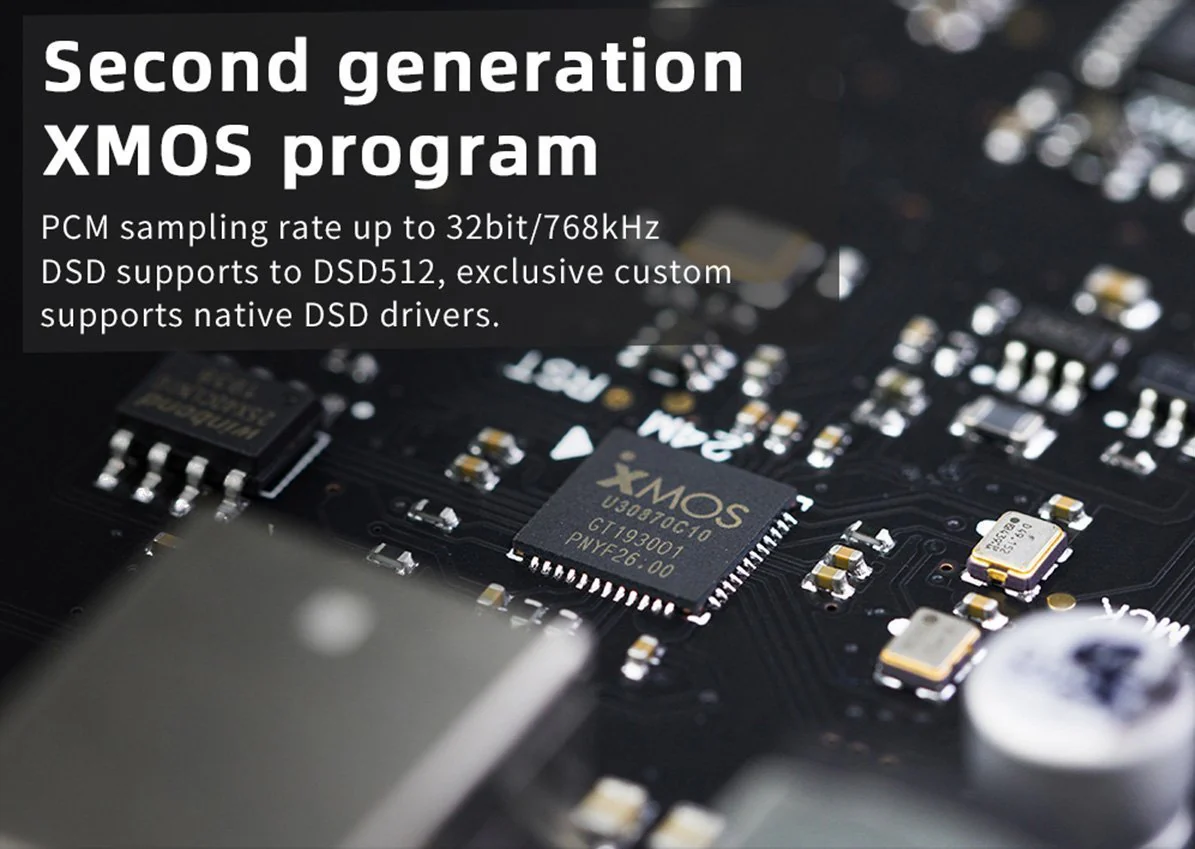

The M200 is Bluetooth 5.0 compatible, has a second generation XMOS chip, and comes with a high performance audio clock system. It has a PCM sampling rate of 32 bit/ 768 kHz and supports DSD 512 native playback. Finally, the M200 comes with six digital filter modes and includes a remote control for comfortable use.

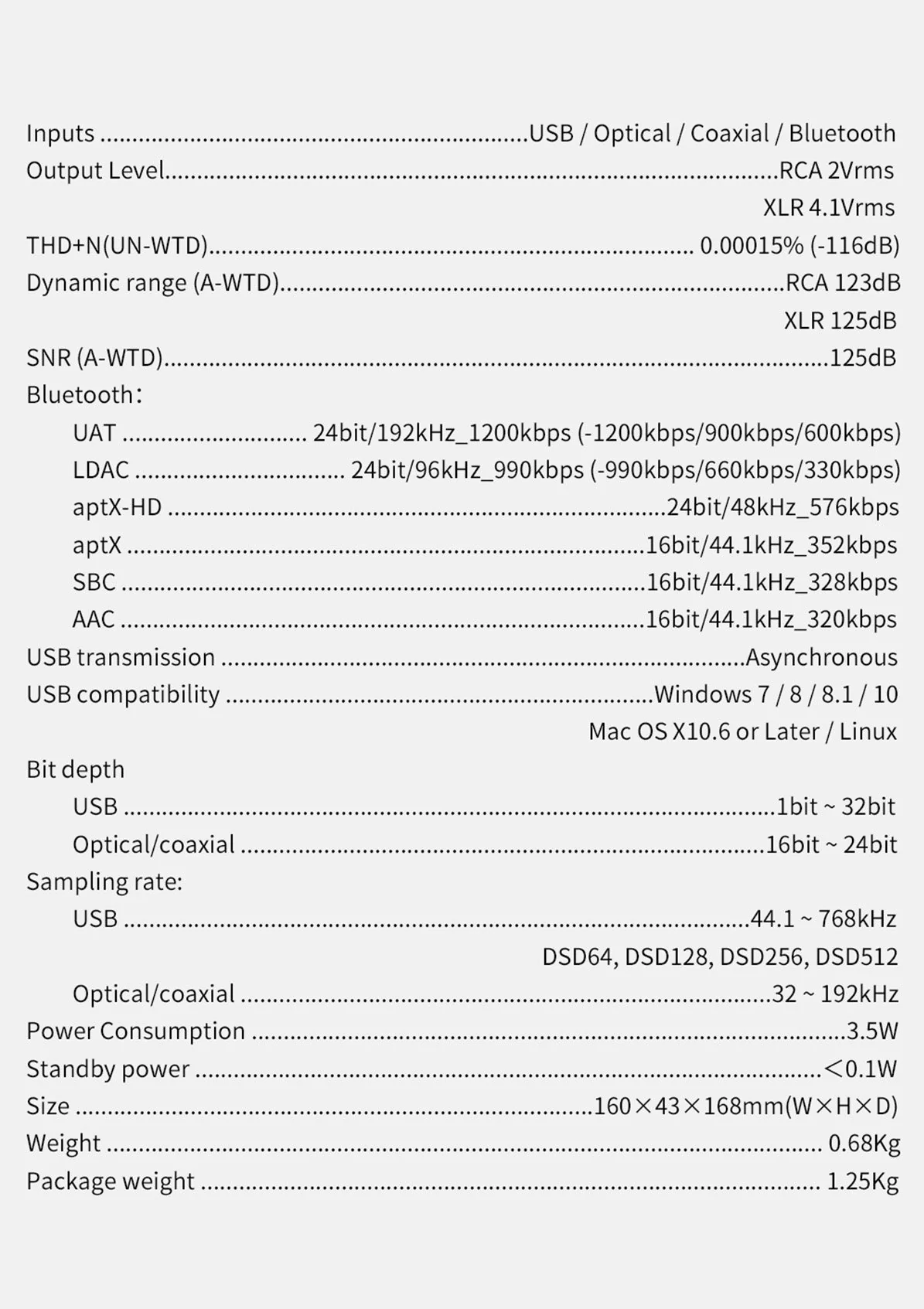

Specs

• Inputs: USB, Coaxial, Optical, Bluetooth
• Outputs: RCA, Balanced XLR
• Output Level:
• RCA: 2Vrms
• XLR: 4.1Vrms
• SNR (A-WTD): 125dB
• Dynamic Range (A-WTD):
• RCA: 123dB
• XLR: 125dB
• THD+N (UN-WTD): -116dB, 0.00015%
• Bluetooth:
• UAT: 24bit/192kHz @ 1200kbps (-1200kbps/900kbps/600kbps)
• LDAC: 24bit/96kHz @ 990kbps (-990kbps/660kbps/330kbps)
• aptX-HD: 24bit/48kHz @ 576kbps
• aptX: 16bit/44.1kHz @ 352kbps
• SBC: 16bit/44.1kHz @ 328kbps
• AAC: 16bit/44.1kHz @ 320kbps
• USB Transmission: Asynchronous
• USB Compatibility: Windows 7/8/8.1/10, Mac OS X 10.6 or later, Linux
• Bit Depth:
• USB: 1 - 32bit
• Optical/Coaxial: 16 - 24bit
• Sampling Rate:
• USB: 44.1 - 768kHz (DSD64, DSD128, DSD256, DSD512)
• Optical/Coaxial: 32 - 192kHz
• Power Consumption: 3.5 W
• Standy Power: <0.1W
• Size: 160 x 43 x 168 mm (w x h x d)
• Weight: 0.68 kg

Featured reviews

"A very solid-sounding DAC." -Max Settings
