xDuoo TA-03S Tube DAC/Amp

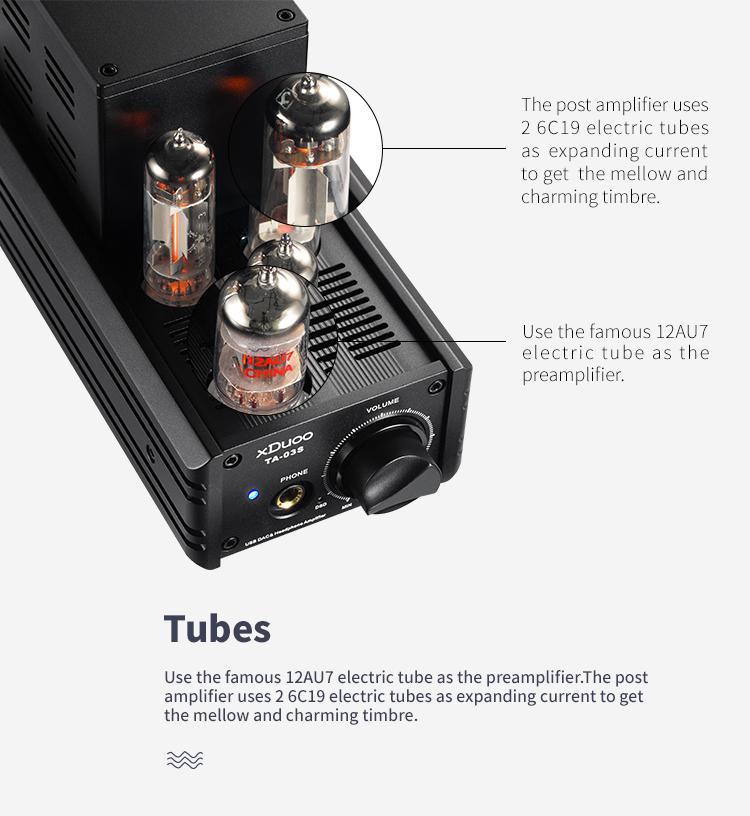

The xDuoo TA-03S Tube DAC/Amp comes with aĀ high-performance XMOS U8 USB chip and dual CS4398 DAC chips while having a small size factor to fit easily on a desk. It uses 12AU7Ā electric tube as a preamplifier and two 6C19 tubes to expand the current for a mellow timbre. AĀ powerful NIPPON CHEMI-CON capacitor and a low-noise E-type transformer thatās specially designed to drive tube amplifiers are included in the TA-03S.
The xDuoo TA-03S Tube DAC/Amp comes with aĀ high-performance XMOS U8 USB chip and dual CS4398 DAC chips while having a small size factor to fit easily on a desk. It uses 12AU7Ā electric tube as a preamplifier and two 6C19 tubes to expand the current for a mellow timbre. AĀ powerful NIPPON CHEMI-CON capacitor and a low-noise E-type transformer thatās specially designed to drive tube amplifiers are included in the TA-03S.
Specs:
- Output: (Phone) 300mW (600/300ohm), 200mw (150 ohm)
- Frequency range: 10Hzā40KHz
- Gain: +16dB
- THD+N: <0.1% (1KHz)
- S/N: 110dB
- Impedance: 60ā600 ohm
- Chips: XMOS U8 USB, 2x CS4398
- Tubes: 12AU7 electric tube (preamplifier), 2x 6FC19 electric tubes
- Compliant OS: Windows XP, Vista, 7, 8; Mac OS X
- Capacitor: NIPPON CHEMI-CON
- Transformer: E-Type
- Size: 8.6 x 5.5 x 9.7 in (22 x 14 x 9.5 cm)
- Weight: 5.7 lbs (2.6 kg)
- Output: (Phone) 300mW (600/300ohm), 200mw (150 ohm)
- Frequency range: 10Hzā40KHz
- Gain: +16dB
- THD+N: <0.1% (1KHz)
- S/N: 110dB
- Impedance: 60ā600 ohm
- Chips: XMOS U8 USB, 2x CS4398
- Tubes: 12AU7 electric tube (preamplifier), 2x 6FC19 electric tubes
- Compliant OS: Windows XP, Vista, 7, 8; Mac OS X
- Capacitor: NIPPON CHEMI-CON
- Transformer: E-Type
- Size: 8.6 x 5.5 x 9.7 in (22 x 14 x 9.5 cm)
- Weight: 5.7 lbs (2.6 kg)
Original: $289.00
-70%$289.00
$86.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The xDuoo TA-03S Tube DAC/Amp comes with aĀ high-performance XMOS U8 USB chip and dual CS4398 DAC chips while having a small size factor to fit easily on a desk. It uses 12AU7Ā electric tube as a preamplifier and two 6C19 tubes to expand the current for a mellow timbre. AĀ powerful NIPPON CHEMI-CON capacitor and a low-noise E-type transformer thatās specially designed to drive tube amplifiers are included in the TA-03S.
The xDuoo TA-03S Tube DAC/Amp comes with aĀ high-performance XMOS U8 USB chip and dual CS4398 DAC chips while having a small size factor to fit easily on a desk. It uses 12AU7Ā electric tube as a preamplifier and two 6C19 tubes to expand the current for a mellow timbre. AĀ powerful NIPPON CHEMI-CON capacitor and a low-noise E-type transformer thatās specially designed to drive tube amplifiers are included in the TA-03S.
Specs:
- Output: (Phone) 300mW (600/300ohm), 200mw (150 ohm)
- Frequency range: 10Hzā40KHz
- Gain: +16dB
- THD+N: <0.1% (1KHz)
- S/N: 110dB
- Impedance: 60ā600 ohm
- Chips: XMOS U8 USB, 2x CS4398
- Tubes: 12AU7 electric tube (preamplifier), 2x 6FC19 electric tubes
- Compliant OS: Windows XP, Vista, 7, 8; Mac OS X
- Capacitor: NIPPON CHEMI-CON
- Transformer: E-Type
- Size: 8.6 x 5.5 x 9.7 in (22 x 14 x 9.5 cm)
- Weight: 5.7 lbs (2.6 kg)
- Output: (Phone) 300mW (600/300ohm), 200mw (150 ohm)
- Frequency range: 10Hzā40KHz
- Gain: +16dB
- THD+N: <0.1% (1KHz)
- S/N: 110dB
- Impedance: 60ā600 ohm
- Chips: XMOS U8 USB, 2x CS4398
- Tubes: 12AU7 electric tube (preamplifier), 2x 6FC19 electric tubes
- Compliant OS: Windows XP, Vista, 7, 8; Mac OS X
- Capacitor: NIPPON CHEMI-CON
- Transformer: E-Type
- Size: 8.6 x 5.5 x 9.7 in (22 x 14 x 9.5 cm)
- Weight: 5.7 lbs (2.6 kg)
